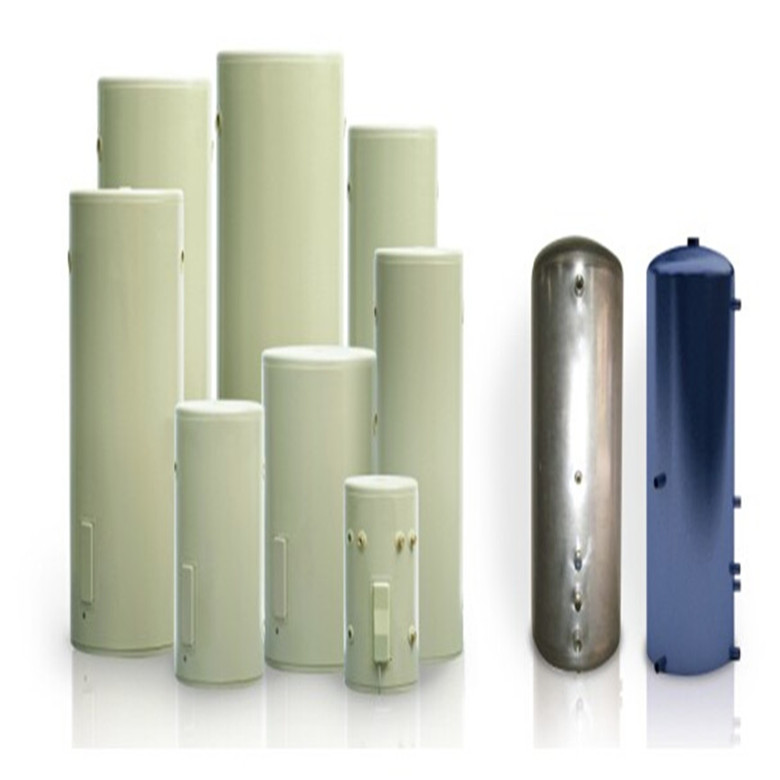

Split Pressurized Water Tank IPWT series
Split Pressurized Water Tank IPWT series
Product Model: Split Pressurized Water Tank IPWT series



ModelIPWT-100IPWT-150IPWT-200IPWT-250IPWT-300IPWT-400IPWT-500

Capacity(Liters)

100L150L200L250L300L400L500L
Inner Tank Dia.Φ
370
Φ370Φ470Φ470Φ470Φ600Φ600
Φ368Φ438Φ542Φ542Φ613Φ613Φ613

Outer Tank Dia.

Φ470Φ470Φ560Φ560Φ560Φ700Φ700
Φ450Φ520Φ620Φ620Φ710Φ710Φ710



InnerTank Material&Thickness

SUS304
1.2mm
SUS3041.2mmSUS3041.5mmSUS3041.5mmSUS3041.5mmSUS3042.0mmSUS3042.0mm
Enamel BTC340R
1.8mm
Enamel BTC340R2.0mmEnamel BTC340R2.0mmEnamel BTC340R2.0mmEnamel BTC340R2.5mmEnamel BTC340R2.5mmEnamel BTC340R2.5mm
Outer Tank Material&Thickness  White Color Steel 0.55mm
Insulation Layer Thickness

50mm

50mm45mm45mm45mm50mm50mm
40mm40mm40mm40mm40mm40mm40mm
Copper Coil Inlet&Ooterlet Size  1/2’
Inlet&Ooterlet Size3/4’3/4’1’1’1’1’1’
Heat-exchange area of upperNone0.4㎡0.4㎡0.4㎡0.4㎡0.5㎡0.5㎡
Heat-exchange area of bottom0.6㎡0.6㎡0.6㎡0.7㎡0.7㎡0.8㎡0.8㎡
Subsidiary heating power2.0KW2.0KW2.0KW2.0KW2.0KW3.0KW3.0KW
Water Tank Size(mm)Φ47*104Φ47*144Φ56*125Φ56*152Φ56*181Φ70*154Φ70*185
Φ45*111Φ45*157Φ52*153Φ62*128Φ62*153Φ71*158Φ71*172
Packing55*55*11255*55*15064*64*13364*64*15864*64*18778*78*16378*78*195
48*48*12048*48*16755*55*16366*65*13866*66*16374*74*16874*74*180
AccessoriesMagnesium rods,P/T valve,Drain water valve,Ckeck-pressure reduce valve
