Product Name
Non-pressure Type

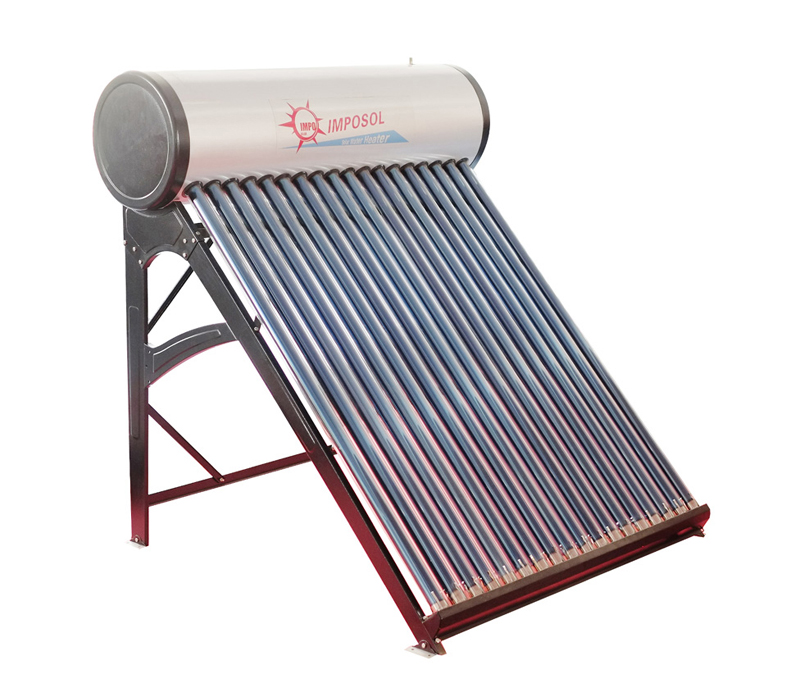

IPJG Series Non-pressure Solar Water Heater Galvanized Steel Surface
IPJG Series Non-pressure Solar Water Heater Galvanized Steel Surface
Product Model: IPJG 100~400GS Galvanized Steel Surface


Model

Light Area

( )

Vacuum   Tube

Capacity

(Liters)

20GP/40HQ
Loading Qty
Ø(mm)L(mm)NO.
IPJG 80GS1.1258180088080/194
IPJG 100GS1.45818001010071/172
IPJG 120GS1.685818001212062/150
IPJG 150GS2.15818001515052/125
IPJG 160GS2.245818001616048/116
IPJG 180GS2.525818001818043/105
IPJG 200GS2.85818002020039/96
IPJG 240GS3.365818002424034/82
IPJG 250GS3.55818002525033/80
IPJG 300GS4.25818003030028/68
IPJG 360GS5.045818003636023/57
IPJG 400GS5.65818004040021/52




















Technical Specifications :

  1. Inner Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , laser welding technology .

  2. Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .

  3. Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .

  4. Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

  5. Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .

  6. M8 Stainless steel SUS 304 bolts and nuts .

  7. 58mm Silicone seal ring and dust ring

  8. Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent


Optional accessories :

  1. Aluminum component reflectors

  2. Electrical heater

  3. Magnesium anode rod

  4. Assistant tank - Cold water filling tank

  5. Solar Controller
