Product Name
Vacuum Tube Non-pressure Type

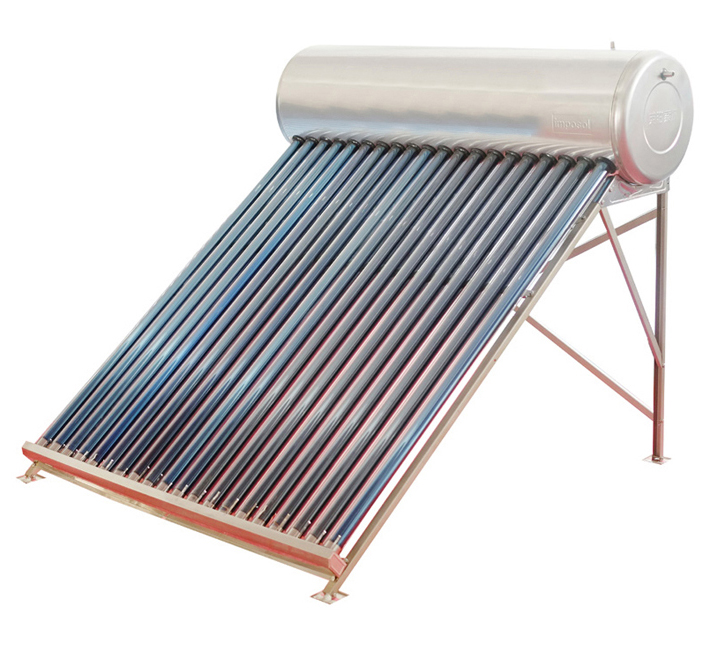

IPJG Series Non-pressure Solar Water Heater Stainless Steel SUS 304 Surface
IPJG Series Non-pressure Solar Water Heater Stainless Steel SUS 304 Surface
Product Model: IPJG 100~400SS Stainless Steel SUS 304 Surface


Model

Light

Area(㎡)

Vacuum   Tube

Capacity

(Liters)

20FT/40HQ

Loading Qty

Ø(mm)L(mm)NO.
IPJG 100 SS1.45818001010071/172
IPJG 150 SS2.15818001515052/125
IPJG 200 SS2.85818002020039/96
IPJG 250 SS3.55818002525033/80
IPJG 300 SS4.25818003030028/68
IPJG 400 SS5.65818004040021/52







IPJG 80 SS1.1258180088080/194
IPJG 120 SS1.685818001212062/150
IPJG 160 SS2.245818001616048/116
IPJG 180 SS2.525818001818043/105
IPJG 240 SS3.365818002424034/82
IPJG 360 SS5.045818003636023/57





















Technical Specifications :

  1. Inner Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , laser welding technology .

  2. Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .

  3. Outer Tank : SUS304-2B food-grade stainless steel  - 0.4mm thickness , free-welding technology .

  4. Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

  5. Frame support : SUS 201BA stainless steel  - 1.2mm thickness or Aluminum alloy 2.0mm thickness, anti-corrosive and anti-ultraviolet .

  6. M8 Stainless steel SUS 304 bolts and nuts .

  7. 58mm Silicone seal ring and dust ring

  8. Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent


Optional accessories :

  1. Aluminum component reflectors

  2. Electrical heater

  3. Magnesium anode rod

  4. Assistant tank - Cold water filling tank

  5. Solar Controller
