Product Name
Heat Pipe Pressure Type

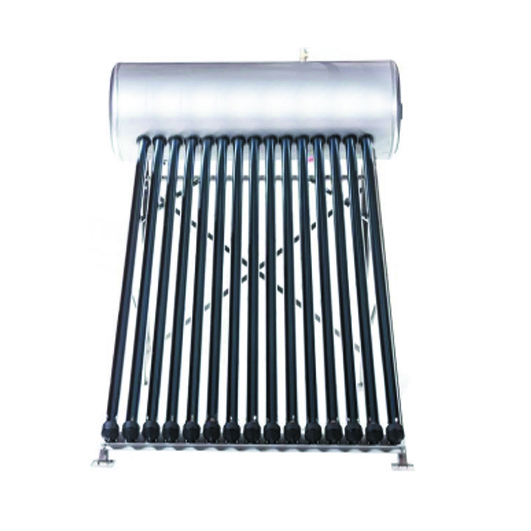

IPCB Series Heat Pipe Pressure Solar Water Heater Stainless Steel Surface
IPCB Series Heat Pipe Pressure Solar Water Heater Stainless Steel Surface
Product Model: IPCB 100~400SS Stainless Steel Surface
ModelLight Area(㎡)Vacuum   TubeCapacity (Liters)20GP/40HQ Loading Qty
Ø(mm)L(mm)NO.
IPCB 100 SS1.458180010100L63/152
IPCB 120 SS1.6858180012120L55/135
IPCB 150 SS2.158180015150L47/114
IPCB 160 SS2.2458180016160L44/106
IPCB 180 SS2.5258180018180L40/97
IPCB 200 SS2.858180020200L37/89
IPCB 240 SS3.3658180024240L32/77
IPCB 250 GS3.558180025250L31/75
IPCB 300 SS4.258180030300L26/64
IPCB 360 SS5.0458180036360L22/54















Technical Specifications :

  1. Inner Tank : SUS304-2B food-grade stainless steel - 1.2mm thickness , laser welding technology .

  2. Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .

  3. Heat pipe : OD.8mm*0.6mm Oxygen free copper anti-freeze heat pipe OD.14mm*1mm condenser, Total length 1700mm ,with 0.25mm pure aluminium fin

  4. Outer Tank : SUS304-2B food-grade stainless steel  - 0.4mm thickness , free-welding technology .

  5. Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

  6. Frame support : SUS 201BA stainless steel  - 1.2mm thickness or Aluminum alloy 2.0mm thickness, anti-corrosive and anti-ultraviolet .

  7. M8 Stainless steel SUS 304 bolts and nuts .

  8. 58mm Silicone seal ring and dust ring

  9. Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent

  10.  Pressure&temperature valve

  11.  Magnesium anode rod

  12. Pressure relief valve with check valve


Optional accessories :

  1. Aluminum component reflectors

  2. Electrical heater

  3. Solar Controller
