Flat Panel Pressure Type

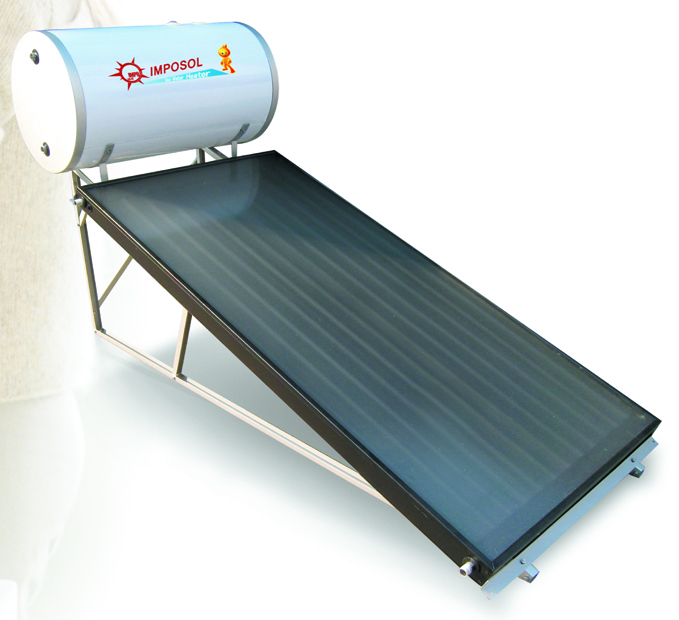

IPFT Series Direct ( Open Loop ) Flat Plate Pressure Solar Water Heater Galvanized Steel Surface
IPFT Series Direct ( Open Loop ) Flat Plate Pressure Solar Water Heater Galvanized Steel Surface
Product Model: IPFT 100~300II GS Galvanized Steel Surface
ModelFlat Plate Solar CollectorCapacity
(Liters)
Loading Quantity   (20GP/40HQ)
Gross Area(㎡)Unit Area (㎡)NO .
IPFT 100II GS2㎡2㎡110049/118
IPFT 150II GS2㎡2㎡115042/102
IPFT 200II GS3㎡3㎡120031/75
IPFT 300II GS4㎡2㎡230023/55
















Technical Specifications


Flat Plate Solar Collector Part :

  • Dimensions : 2000*1060 ( 1560 )*80 mm , Gross area 2 ( 3 ) m2, Absorber area 1.8 ( 2.7 ) m2 .

  • Core material : 22mm header copper pipe with 10mm branch copper pipe - 0.6mm thickness , aluminum heat absorption plate wth black chrome coating .

  • Cover glass material : Low iron tempered glass 3.2mm . Transmittance 91%, EPDM+metal sealed

  • Frame material : Aluminum alloy 1.0mm

  • Insulation material : Glass wool ad PE foam ,35mm thickness

  • Back sheet material : galvanized plate 0.3mm

  • Working ( Testing ) pressure : 600kpa ( 800kpa )


Solar Water Tank And Frame Support Part :

  • Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .

  • Inner Tank : SUS304-2B food-grade stainless steel - 1.2mm thickness , laser welding technology .

  • Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

  • Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .

  • M8 Stainless steel SUS 304 bolts and nuts .

  • Silicone seal ring and dust ring

  • Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent

  • Pressure&temperature valve

  • Magnesium anode rod

  • Pressure relief valve with check valve

  • Thermal circulation connection pipe with insulation

 Optional Accessories :

  • Electrical heater

  • Solar Controller

  • Freeze Protection Valve

  • Vacuum breaker valve
