compact and split high pressure solar water heater
Compact direct/indirect flat plate solar water heater IPFT series
Compact direct/indirect flat plate solar water heater IPFT series

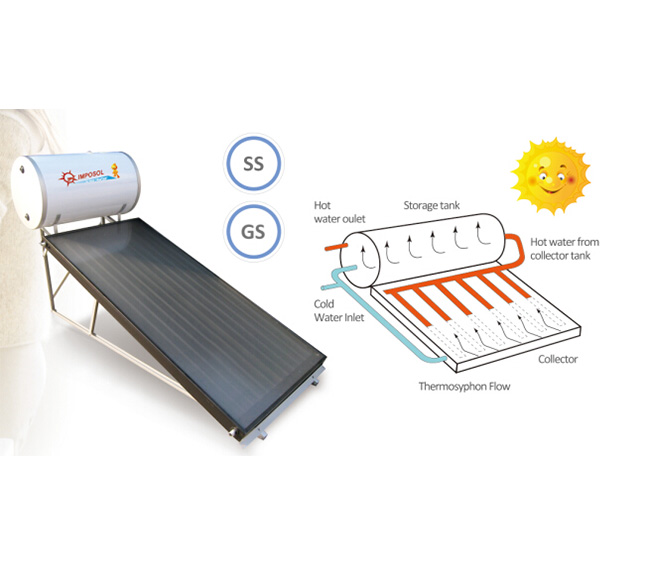

Product Model: Compact direct/indirect flat plate solar water heater IPFT series

Features

Save 50% to 85%of your water heating energy consumption

Flexible solution with options of collector and tank capacity

Easy to mounting and installation

Worklife over 15 years

Reliable, low maintenance operation

Strong design to withstand the extreme weather condition

Prefect combination with buildings



ModelIPFT-100-GS/SSIPFT-150-GS/SSIPFT-200-GS/SSIPFT-300-GS/SS

flat
plate
solar
collector

quantity
dimensions
light area
coating
header
insulation

1
1,030*2,030mm
1*2.00㎡
selective absorbing
Cu 22 mm
Glass wool

1
1,030*2,030mm
1*2.00㎡
selective absorbing
Cu 22 mm
Glass wool

1/2
1,030*2,030mm
1/2*2.00㎡
selective absorbing
Cu 22 mm
Glass wool

2/3
1,030*2,030mm
2/3*2.00㎡
selective absorbing
Cu 22 mm
Glass wool

water
tank

capacity
diameter
operating pressure
insulating layer
insulation thickness
connections
inner material
outer material

100L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS316L
color steel/SUS

150L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS317L
color steel/SUS

200L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS318L
color steel/SUS

300L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS319L
color steel/SUS

support

material
Anti-corrosin
use

hot Galvanized steel
Powder coated
Flat and slope roof installation

connection
pipe

Material
Diameter
insulating material
insulation thickness

flexble stainless steel pipe
DN20-3/4″
elastomer rubber with protective PE film
20mm/13mm
