Technical Specifications
Inner tank;SUS304-2B/316 stainless steel food-grade stainless steel,laser welding technology
VacuumTube:High-dfficientcoating/58*1800mm vacuumtube,Hail-resistance:25mm-40mm
Outer tank:Painted/aluminum-zinc coated steel/ SUS304 stainless steel,free welding technology
Insulation layer: High density polyurethane,72 hours efficient heat preservation
Frame:Stainless steel/Aluminum alloy/galvanized steel.Anti-corrosive and Anti-ultraviolet
Accessories:Reflector/Electric heater/Anode magnesium stick/Solar Controller
Model | Lighting Area(㎡) | Vacuum Tube | TankNet Capacity(Liters) | Overall Capacity(Liters) | 20GP/10HQ LoadingQty (sets) | ||
Φ(mm) | L(m) | NO. | |||||

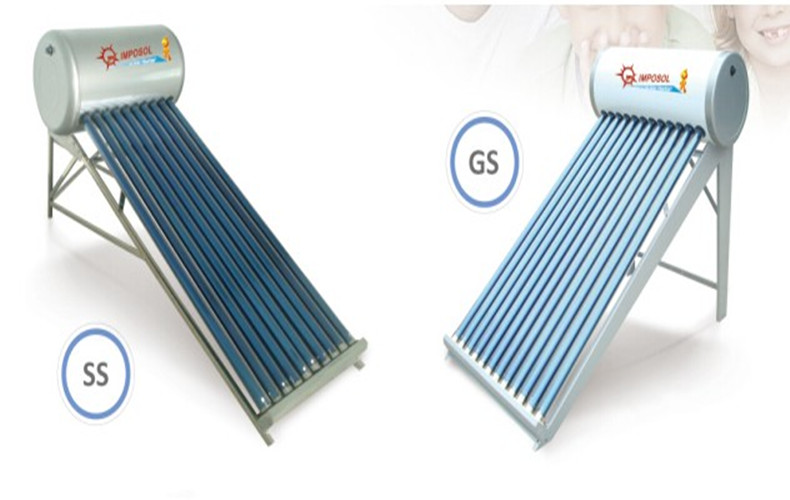

IPJG47581810-GS/SS | 1.4 | 58 | 1800 | 10 | 85 | 116 | 71/172 |
IPJG47581812-GS/SS | 1.68 | 58 | 1800 | 12 | 100 | 137 | 32/150 |
IPJG47581815-GS/SS | 2.1 | 58 | 1800 | 15 | 125 | 172 | 52/125 |
IPJG47581816-GS/SS | 2.24 | 58 | 1800 | 16 | 135 | 185 | 48/116 |
IPJG47581818-GS/SS | 2.52 | 58 | 1800 | 18 | 150 | 206 | 43/105 |
IPJG47581820-GS/SS | 2.8 | 58 | 1800 | 20 | 170 | 232 | 39/96 |
IPJG47581824-GS/SS | 3.36 | 58 | 1800 | 24 | 200 | 274 | 34/82 |
IPJG47581830-GS/SS | 4.2 | 58 | 1800 | 30 | 250 | 343 | 28/68 |
IPJG47581836-GS/SS | 5.04 | 58 | 1800 | 36 | 300 | 412 | 23/57 |
IPJG47471515-GS/SS | 1.35 | 47 | 1500 | 15 | 110 | 134 | 62/152 |
IPJG47471518-GS/SS | 1.62 | 47 | 1500 | 18 | 135 | 164 | 54/131 |
IPJG47471520-GS/SS | 1.8 | 47 | 1500 | 20 | 150 | 182 | 50/122 |
IPJG47471524-GS/SS | 2.16 | 47 | 1500 | 24 | 175 | 213 | 43/104 |
IPJG47471530-GS/SS | 2.7 | 47 | 1500 | 30 | 220 | 268 | 34/84 |
IPJG47471536-GS/SS | 3.24 | 47 | 1500 | 36 | 260 | 318 | 29/71 |
