compact and split high pressure solar water heater

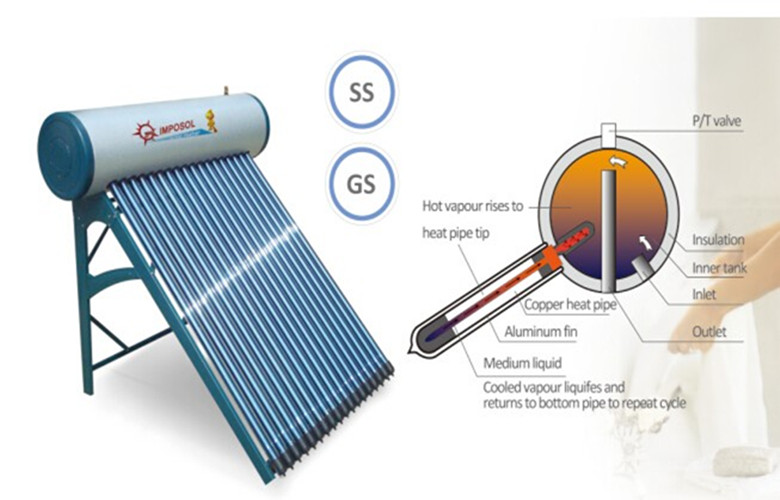

Compact Heat Pipe Vacuum Tube Pressurized Solar Water Heater IPCB series
Compact Heat Pipe Vacuum Tube Pressurized Solar Water Heater IPCB series
Product Model: Compact Heat Pipe Vacuum Tube Pressurized Solar Water Heater IPCB series

Technical Specifications

Inner Tank:SUS304-2B/316stainless steel/BTR340R steel plate with enamel coating,laser welding technology

Vacuum Tube:High-efficient coating 58*1800 heat pipe vacuum

tube Hail-resistance:25mm-40mm

Heat pipe:Oxygen-free copper material,Antifreeze,Super fast heat conduction speed

Outer tank:Painted/aluminum-zinc coated steel/ SUS304 stainless steel,free welding technology

Insulation layer: High density polyurethane,72 hours efficient heat preservation

Frame:Stainless steel/Aluminum alloy/galvanized steel.Anti-corrosive and Anti-ultraviolet

Working pressure 600Kpa,testing pressure 1000Kpa

P/T valve and check-reducing pressure valve for protecting water tank

Accessories:Reflector/Electric heater/Anode magnesium stick/Solar Controller



ModelLighting
Area(m2)
Vacuum TubeTankNet Capacity(Liters)20GP/10HQLoadingQty (sets)
Φ(mm)L(m)NO.

IPCB47581810-GS/SS

1.45818001095

63/152

IPCB47581812-GS/SS

1.6858180012110

55/135

IPCB47581815-GS/SS

2.158180015135

47/114

IPCB47581816-GS/SS

2.2458180016145

44/106

IPCB47581818-GS/SS

2.5258180018160

40/97

IPCB47581820-GS/SS

2.858180020175

37/89

IPCB47581824-GS/SS

3.3658180024210

32/77

IPCB47581830-GS/SS

4.258180030260

26/64
