Product Name
Flat Plate Pressure System

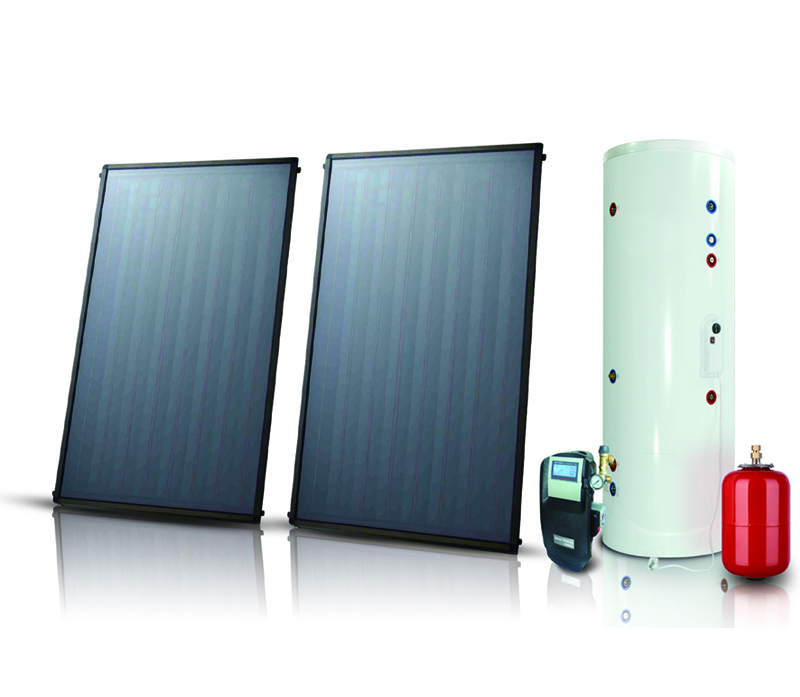

IPSF Series Split Active Flat Plate Solar Water Heater System
IPSF Series Split Active Flat Plate Solar Water Heater System
Product Model: IPSF100-600


No Coil Heat Exchanger

( Open Loop & Active  & Direct System )

Model Solar Collector UnitSolar Water Tank UnitPump Station UnitPacking Volume
ModelTypeCapacity TypeModelType
IPSF100(0)1.5 m²

Pressurized

Flat Panel

100L

Pressurized

No Coil

Open Loop

SR881

Single line

EPP Shell

0.61 m³
IPSF150(0)2 m²150L0.86 m³
IPSF200(0)3 m²200L1.07 m³
IPSF250(0)4 m²250L1.26 m³
IPSF300(0)4 m²300L1.56 m³
IPSF400(0)5 m²400L1.96 m³
IPSF500(0)7 m²500L2.37 m³
IPSF600(0)8 m²600L2.76 m³

One Coil Heat Exchanger

( Closed Loop & Active & Indirect System )

Model Solar Collector UnitSolar Water Tank UnitPump Station UnitPacking Volume
ModelTypeCapacity TypeModelType
IPSF100(1)1.5 m²

Pressurized

Flat Panel

100L

Pressurized

One Coil

Closed Loop

SR881

Single line

EPP Shell

Expansion

Tank

0.61 m³
IPSF150(1)2 m²150L0.86 m³
IPSF200(1)3 m²200L1.07 m³
IPSF250(1)4 m²250L1.26 m³
IPSF300(1)4 m²300L1.56 m³
IPSF400(1)5 m²400L1.96 m³
IPSF500(1)7 m²500L2.37 m³
IPSF600(1)8 m²600L2.76 m³

Double Coil Heat Exchanger

( Closed Loop & Active & Indirect System )

Model Solar Collector UnitSolar Water Tank UnitPump Station UnitPacking Volume
ModelTypeCapacity TypeModelType
IPSF200(2)3 m²

Pressurized

Flat Panel

200L

Pressurized

Two Coils

Closed Loop

SR881

Single line

EPP Shell

Expansion

Tank

1.07 m³
IPSF250(1)4 m²250L1.26 m³
IPSF300(2)4 m²300L1.56 m³
IPSF400(2)5 m²400L1.96 m³
IPSF500(2)7 m²500L2.37 m³
IPSF600(2)8 m²600L2.76 m³




































































Features :

  • Domestic hot water application , even commercial application.

  • 100-600 Liters capacity , more choices.

  • 5 years warranty, 20+ years lifespan.

  • Easy to install ,can be mounted on the flat or pitched roof .

  • Split system, forced pump circulation, beautiful appearance after installation  .

  • Solar collector unit has faster heating in a warm climate .

  • SUS 304 food grade stainless steel solar water tank .

  • Single line pump station with Wilo or Grundfos or Shinhoo pump .

  • Special expansion tank for solar, suitable for limited use up to 130℃.
