Compact Non-Pressure Series Controller

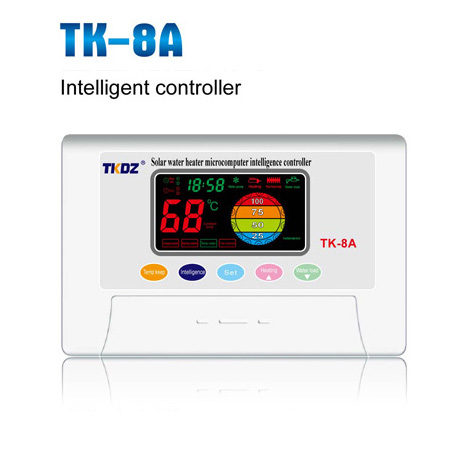

TK-8A Solar Hot Water Controller
Product Model:
| Technical Specifications |
| 1 | Power : 220VAC±10% |
| 2 | Size : 20*13*3.6cm |
| 3 | Temperature-detective precision :±2℃ |
| 4 | Power loss <5W |
| 5 | Autocontrol supercharging ≦500W |
| 6 | Electric heating belt ≦500W |
| 7 | Auxiliary heating ≦2000W |
| Functions |
| 1 | Standard time set |
| 2 | Start self-checking |
| 3 | Water temperature preset |
| 4 | Water level preset |
| 5 | Water insufficiency alert |
| 6 | Water insufficiency loading |
| 7 | Temperature loading |
| 8 | Constant water level coding |
| 9 | Manual control |
| 10 | Second time timing loading |
| 11 | Second time timing heating |
| 12 | Pipe heat keeping |
| 13 | Pipe supercharging |
| 14 | Constant temperature heating |
| 15 | Electricity leakage protection |
| 16 | Auto leakage |
| 17 | High temperature loading protection |
| 18 | Dry heating prevent |
| 19 | Electric heating belt fire prevention |
| 20 | Power off memory |
