Product Name
High Pressure Type

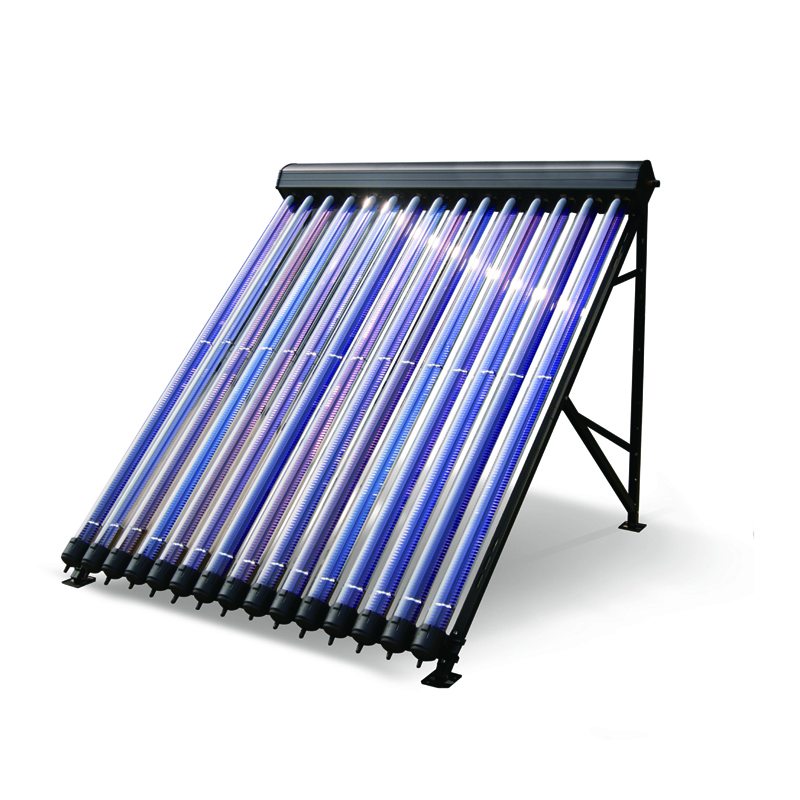

SCHMV Heat Pipe Vacuum Tube 70-1900 mm Pressure Solar Collector
SCHMV Heat Pipe Vacuum Tube 70-1900 mm Pressure Solar Collector
Product Model: IPRB C 701910-25

SCHMV Heat Pipe Vacuum Tube 70-1900mm Pressure Solar Collector

Main specifications :

  1. Inner manifold: Copper header pipe , Potable water rated.Maximum pressure: 1000kPa, Size ?35mm x 1mm thickness

  2. Outer manifold: Aluminium alloy with Anodized or Powder Coated Finish , thickness 2mm

  3. Insulation: High quality Glass Wool (K = 0.043W/mK), 50mm

  4. Heat Pipe Vacuum tube: 70mm*1900mm dimension  ; 2.3mm thickness borosilicate 3.3 single wall glass&metal sealing technology ,Vacuum: P<5x10-5 Pa;

  5. Inside the High purity “oxygen free” copper heat pipe (14mm*80mm condenser ) and copper heat-absorbing strip with AlN/AIN-SS/CU coating ,Min. startup temperature -45 deg.

  6. Frame: 6005-T5 Aluminium Alloy 2.5mm thickness

  7. Stainless steel SUS 304 bolts

  8. Rubber Components :HTV Silicone Rubber (UV stabilised)

  9. Connection Options:22mm OD copper (Europe)

Optional accessories :

  1. Reflector:aluminum component


ModelLight Area(㎡)Heat Pipe Vacuum Tube

Capacity

( Liters )

20GP/40HQ

Loading Qty

Ø(mm)L(mm)Qty   (pcs)
IPRB C 7019101.8770190010100-12081/217
IPRB C 7019152.8170190015150-18056/150
IPRB C 7019203.7870190020200-24043/115
