Product Name
Copper Coil Pressure Type

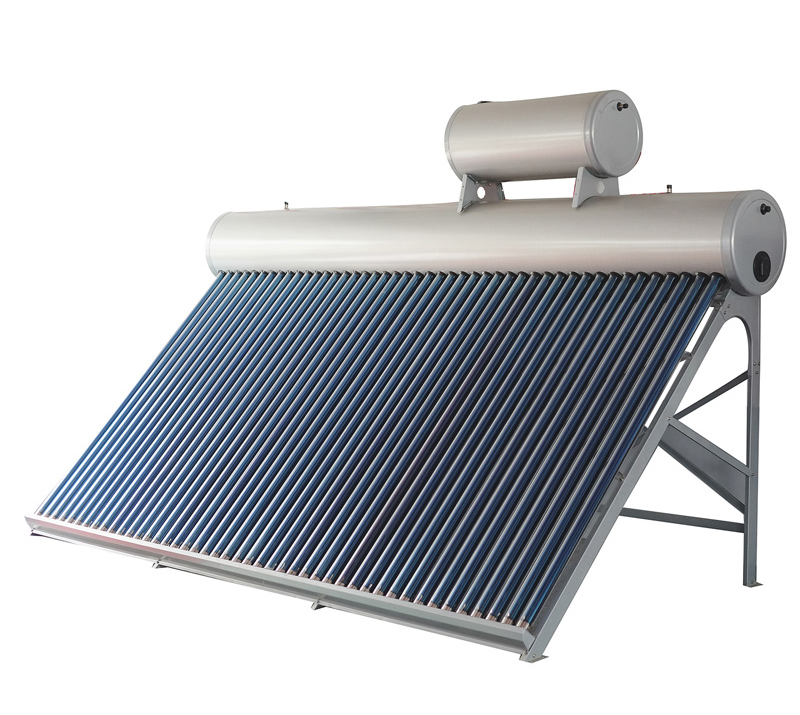

IPZZ Series Copper Coil Pressure Solar Water Heater Galvanized Steel Surface
IPZZ Series Copper Coil Pressure Solar Water Heater Galvanized Steel Surface
Product Model: IPZZ 100~400GS Galvanized Steel Surface
ModelLight Area(㎡)Vacuum   Tube Capacity
 (Liters)

20GP/40HQ

Loading

Ø(mm)L(mm)NO.
IPZZ 150 GS2.15818001515052/125
IPZZ 180 GS2.525818001818043/105
IPZZ 200 GS2.85818002020039/96
IPZZ 240 GS3.365818002424034/82
IPZZ 300 GS4.25818003030028/68
IPZZ 360 GS5.045818003636023/57

















Technical Specifications :

  1. Inner Tank : SUS304-2B food-grade stainless steel - 0.5mm thickness , laser welding technology .

  2. Copper coil : Ø12mm*0.8mm , total length 25 Meters , heat exchanger 1.0 square meter .

  3. Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .

  4. Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .

  5. Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

  6. Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .

  7. M8 Stainless steel SUS 304 bolts and nuts .

  8. 58mm Silicone seal ring and dust ring

  9. Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent


Optional accessories :

  1. Aluminum component reflectors

  2. Electrical heater

  3. Magnesium anode rod

  4. Assistant tank - Cold water filling tank

  5. Solar Controller
