Product Name
Low Pressure Type

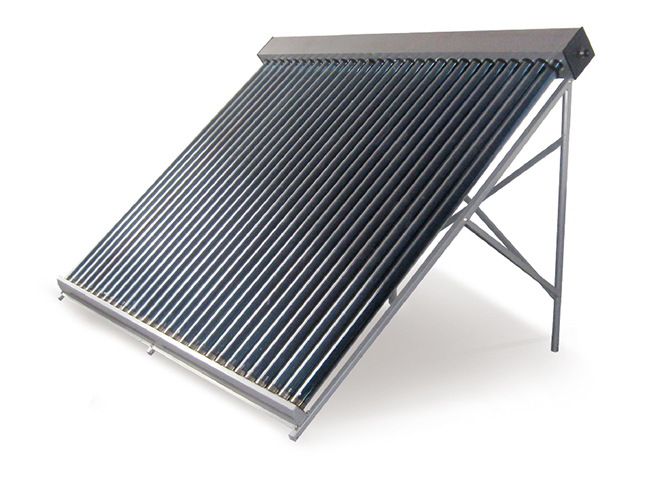

IPRB F series Low Pressure Vacuum Tube Solar Collector - Single Row
IPRB F series Low Pressure Vacuum Tube Solar Collector - Single Row
Product Model: IPRB F 581820-581830
Horizontal Type Single Wing Low Pressure Solar Collector
ModelLight Area(㎡)VacuumTube

Heating Capcity

( Liters )

20GP/40HQ

Loading Qty(sets)

Ø(mm)L(mm)Qty   (pcs)
IPRB F 5818202.8858180020170-20090/220
IPRB F 5818253.6058180025210-25075/181
IPRB F 5818304.3258180030250-30065/157










Technical Specifications :

  1. Inner Manifold : SUS304-2B food-grade stainless steel - 0.5mm thickness , laser welding technology .

  2. Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .

  3. Outer Manifold : SUS304-2B food-grade stainless steel  - 0.4mm thickness , free-welding technology .

  4. Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

  5. Frame support : SUS 201BA stainless steel  - 1.2mm thickness thickness, anti-corrosive and anti-ultraviolet .

  6. M8 Stainless steel SUS 304 bolts and nuts .

  7. 58mm Silicone seal ring and dust ring

  8. Stainless steel SUS304 - 2.0mm thickness 3/4' or 1' inlet, outlet
