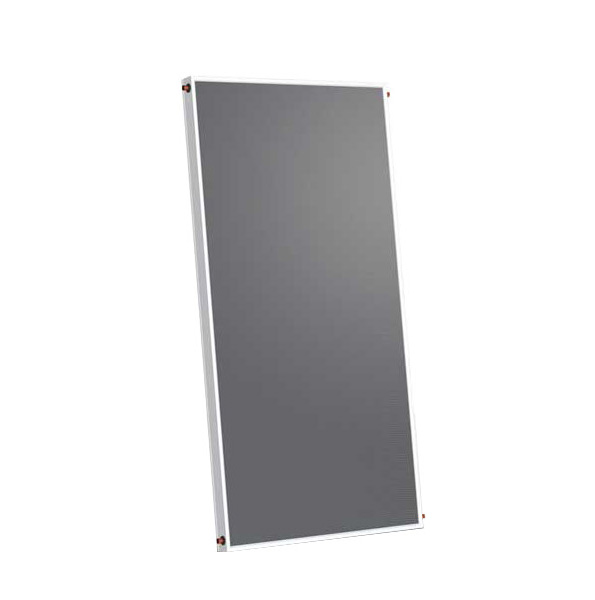

| Model | IPRB E 2.0A |
| Dimensions(W×L×H) | 2000*1060*80mm |
| Absorber area m2 | 2 |
| Absorber area m2 | 1.8 |
| Conversion facotr η % | 77.3 |
| Loss coefficient a1 w/m2K | 3.9 |
| Loss coefficient a2 w/m2k2 | 20.0052 |
| Fluid content L | 2.22 |
| Maximum operating pressure | 1 Mpa |
| Temperature of operation | (-)35～150 ℃ |
| Weight empty | 33 KG |
| Absorber | aluminum, δ=0.2mm |
| Coating | Black Chrome |
| Header pipe | Copper T2, Φ22*0.6*1060mm, 2pcs |
| Riser pipe | Copper T2, Φ10*0.6mm, 8pcs |
| Absorber core welding type | Laser bonding welding |
| Absorptance | ≥95%±2% |
| Emittance | ≤4%±2% |
| Glass cover | Low iron rohbic tempered glass:3.4 mm |
| Dimension of glass sheet | 1988×988mm |
| Transmittance of glass | 87%～91% |
| Frame | aluminum, δ=1.0mm |
| Color of the frame | Black or silver |
| Insulation material | Glass wool + HDPE + EPDM |
| Insulation thickness | 40mm |
| Back Sheet | Galvanzied steel :0.3mm |
| Cover Sealing Material | Metal/EPDM+metal |
| Packing | Nautral carton |
| Packing dimensions | 2020*1100*90 |
