Inverter EVI Heat Pump

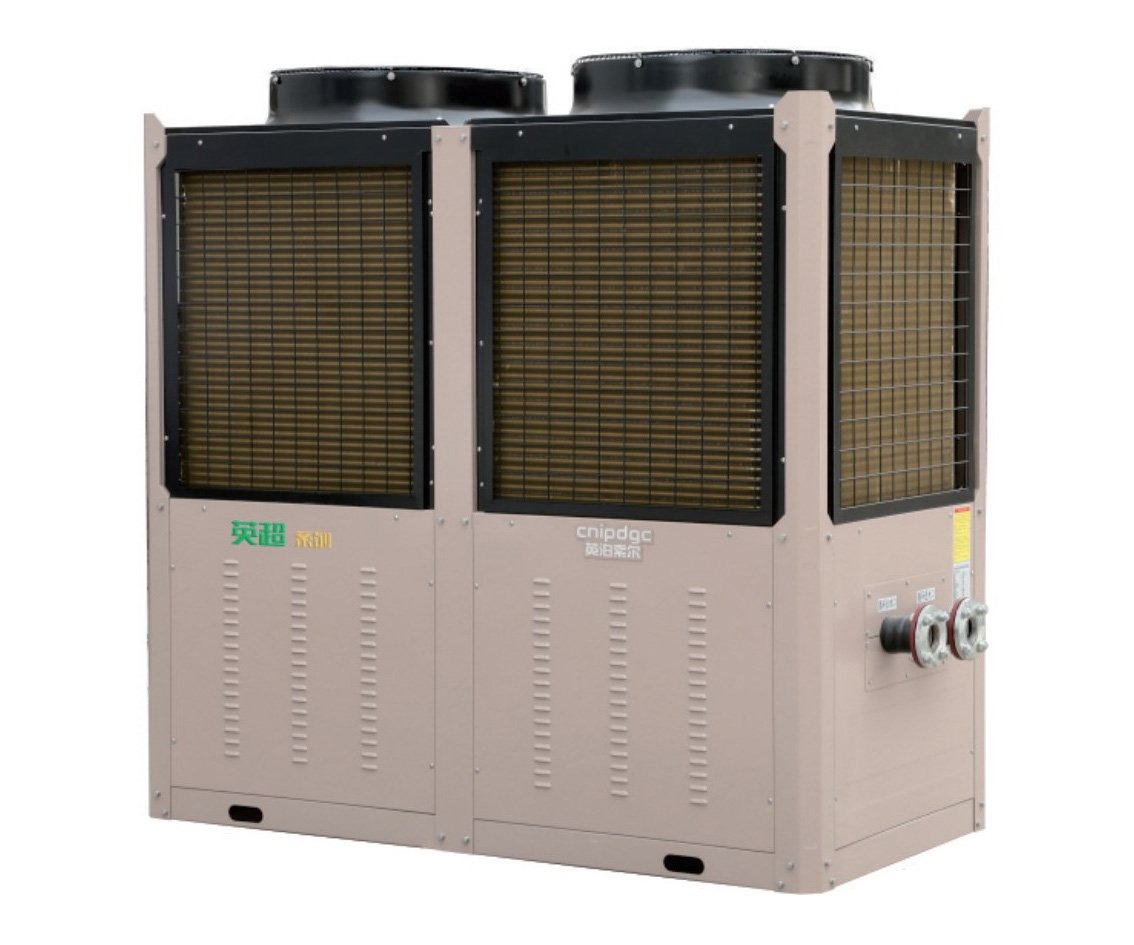

66KW 88KW Inverter& EVI Air Source ( Ultra-Low Ambient Temp.) Heat Pump
66KW 88KW Inverter& EVI Air Source ( Ultra-Low Ambient Temp.) Heat Pump
Product Model: WHP-200/250HC- 66/80KW
ModelWHP-200HC- 66   KWWHP-250HC -   80KW
Power Supply - Refrigerant380-415V/3PH/50HZ   - R410A
Heating Capacity ( KW ) - A6680
Rated Input Power ( KW ) - A18.122
COP ( W/W ) - A3.653.64
Heating Capacity ( KW ) - B4454
Rated Input Power ( KW ) - B17.321.2
COP ( W/W ) - B2.542.55
Cooling Capacity ( KW ) - C4660
Rated Input Power ( KW ) - C1622.8
EER ( W/W ) - C2.882.63
Max. Input Power ( KW )2328
Max. Input Current ( A )3543
Compressor Hitachi   Scroll - EVI Technology
Fan TypeHigh   Efficiency Axial Flow Fan
Fan Quantity ( Pcs )22
Fan Airflow ( m3/h )2800028000
Fan Rated Power ( W )15001500
Heat exchangerHigh Efficient Tube&Shell Type Heat Exchanger
WaterSide Pressure Drop ( Kpa )6565
Inlet/Outlet Pipe Size ( mm )DN50DN50
Min. Flow ( m3/H )>11>15
Noise ( dB(A) )≤67≤67
Heating Water Temp. ℃20 ~   60℃
Cooling  Water Temp. ℃5 ~   20 ℃
Operating Ambient Temp. ℃ -35°C~45℃
Unit Dimension ( mm )1930*980*18901930*980*1890
Weight ( KG )530kg/550kg610kg/700kg
Performance   Condition - A : Ambient temp.   (DB/WB): 7°C/6°C, Water temp. (In/Out): 40°C/ 45°C;
Performance   Condition - B : Ambient temp.   (DB/WB): -12°C/-14°C, Water temp. (Out): 41°C
Performance   Condition - C: Ambient temp.   (DB/WB): 35°C/24°C, Water temp. (In/Out): 12°C/7°C.
