Product Name
On/Off Heat Pump Water Heater

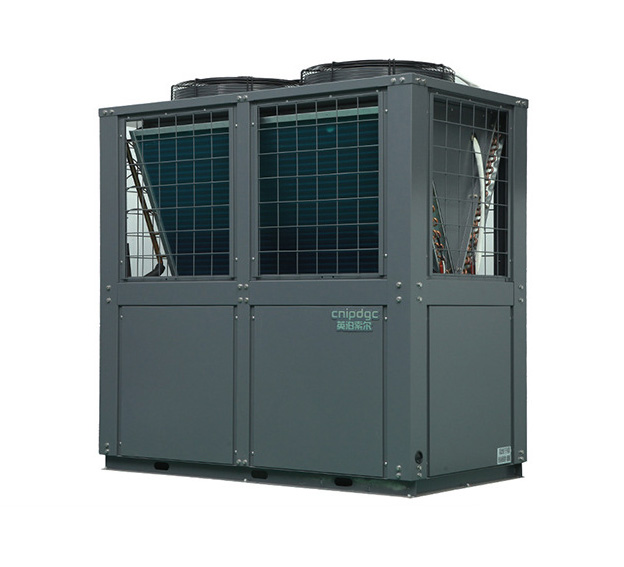

52/70/86/103 KW On/Off Air Source ( Normal Ambient Temp.) Heat Pump Water Heater
52/70/86/103 KW On/Off Air Source ( Normal Ambient Temp.) Heat Pump Water Heater
Product Model: 52/70/86/103 KW
ModelWHP-150HW - 52KWWHP-200HC - 70KWWHP-250HC - 86KWWHP-300HC -103KW

Performance   Condition :  Ambient temp. (DB/WB): 20°C/15°C, Hot Water   temp. : 15°C to 55°C;
Heating Capacity ( KW )52.0070.0086.00103.00
Rated Input Power ( KW )12.5017.0022.6027.10
COP ( W/W )4.164.123.813.80
Hot Water Capacity ( L/H )1100.001500.001850.002215.00
Rated Input Current ( A )32.6045.2059.4071.30
Max Input Current ( A )46.0059.0068.6092.60
Power Supply380V/3PH/ 50Hz
Electric Shock Protection GradeI
Waterproof GradeIPX4
Max. Heating Water Temp. ℃55℃
Operating Ambient Temp. ℃ -10°C~45℃
Compressor EMERSON   Copeland Scroll
RefrigerantR410A
Heat exchangerHigh efficient tank&coil   type heat exchanger
Inlet/Outlet Pipe Size ( mm )DN40Flange   DN50Flange   DN50Flange   DN65
Min. Water Flow ( m3/H )9.0012.0014.8017.70
Water Side Pressure Drop≤80KPa≤80KPa≤90KPa≤90KPa
FanHigh effiiciency axial flow fan
Noise ( dB(A) )≤62≤64≤65≤65
Unit Dimension ( mm )1510*810*15301850*1000*20002000*1000*18502200*1100*2210
Weight ( KG )400.00680.00860.00930.00
