| Model | WHP-150HW - 52KW | WHP-200HW - 70KW | WHP-250HW - 86KW | WHP-300HW -103KW |
| Performance Condition ： Ambient temp. (DB/WB): 20°C/15°C, Hot Water temp. : 15°C to 55°C; | ||||
| Heating Capacity ( KW ) | 52 | 70 | 86 | 103 |
| Rated Input Power ( KW ) | 12.5 | 17 | 22.6 | 27.1 |
| COP ( W/W ) | 4.16 | 4.12 | 3.81 | 3.80 |
| Hot Water Capacity ( L/H ) | 1100.00 | 1500.00 | 1850.00 | 2215.00 |
| Performance Condition ： Ambient temp. (DB/WB): 7°C/6°C, Hot Water temp. : 9°C to 55°C; | ||||
| Heating Capacity ( KW ) | 43 | 56 | 70 | 86.2 |
| Rated Input Power ( KW ) | 12.3 | 16.5 | 20.8 | 25 |
| COP ( W/W ) | 3.50 | 3.39 | 3.37 | 3.45 |
| Performance Condition ： Ambient temp. (DB/WB): -12°C/-14°C, Hot Water temp. : 6°C to 55°C; | ||||
| Heating Capacity ( KW ) | 25.9 | 35.2 | 43 | 54.3 |
| Rated Input Power ( KW ) | 10.9 | 15.2 | 18.5 | 23.4 |
| COP ( W/W ) | 2.38 | 2.32 | 2.32 | 2.32 |
| Rated Input Current ( A ) | 32.6 | 45.2 | 59.4 | 71.3 |
| Max Input Current ( A ) | 46 | 59 | 68.6 | 92.6 |
| Power Supply | 380V/3PH/ 50Hz | |||
| Electric Shock Protection Grade | I | |||
| Waterproof Grade | IPX4 | |||
| Max. Heating Water Temp. ℃ | 55℃ | |||
| Operating Ambient Temp. ℃ | -30°C~45℃ | |||

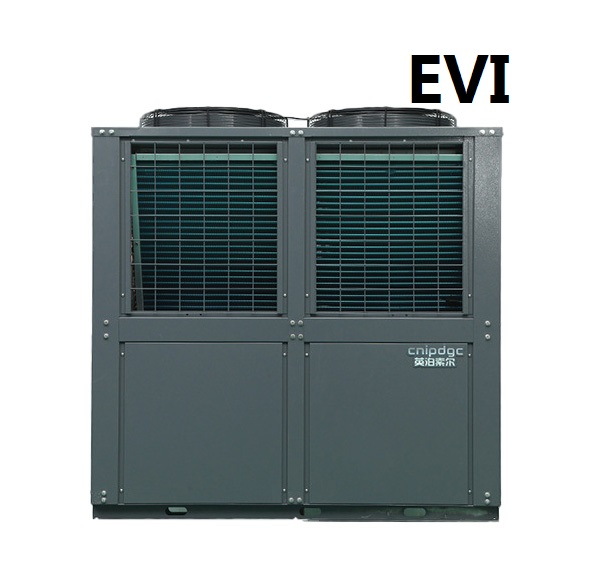

| Compressor | EMERSON Copeland Scroll - EVI Technology | |||
| Refrigerant | R410A | |||
| Heat exchanger | High efficient tank&coil type heat exchanger | |||
| Inlet/Outlet Pipe Size ( mm ) | DN40 | Flange DN50 | Flange DN50 | Flange DN65 |
| Min. Water Flow ( m3/H ) | 9 | 12 | 14.8 | 17.7 |
| Water Side Pressure Drop | ≤80KPa | ≤80KPa | ≤90KPa | ≤95KPa |
| Fan | High effiiciency axial flow fan | |||
| Noise ( dB(A) ) | ≤62 | ≤64 | ≤65 | ≤65 |
| Unit Dimension ( mm ) | 1510*810*1530 | 1850*1000*2000 | 2000*1000*1850 | 2200*1100*2210 |
| Weight ( KG ) | 400 | 680 | 860 | 930 |
