On/Off EVI Heat Pump

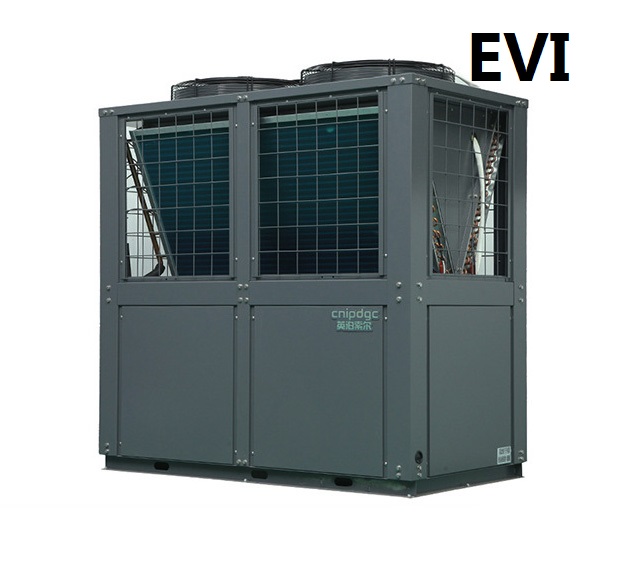

42/58/72KW ON/OFF Air Source EVI ( Ultra-Low Ambient Temp.) Heat Pump
42/58/72KW ON/OFF Air Source EVI ( Ultra-Low Ambient Temp.) Heat Pump
Product Model: 42/58/72KW
ModelWHP-150HC -   42KWWHP-200HC -   58KWWHP-250HC -   72KW
Heating Capacity ( KW ) - A425872
Rated Input Power ( KW ) - A12.316.521.1
COP ( W/W ) - A3.413.523.41
Heating Capacity ( KW    ) - B294050
Rated Input Power ( KW ) - B13.618.423.2
COP ( W/W ) - B2.132.172.16
Cooling Capacity ( KW ) - C365265
Rated Input Power ( KW ) - C13.318.823.3
EER ( W/W ) - C2.712.772.79
Rated Input Current ( A )32.645.259.4
Max Input Current ( A )465968.6
Power Supply380-415V/3PH/ 50Hz
Electric Shock Protection GradeI
Waterproof GradeIPX4
Heating Water Temp. ℃20 ~   55℃
Cooling  Water Temp. ℃5 ~   20 ℃
Operating Ambient Temp. ℃ -30°C~45℃
Compressor EMERSON   Copeland Scroll - EVI Technology
RefrigerantR410A
Heat exchangerHigh efficient tank&coil   type heat exchanger
Inlet/Outlet Pipe Size ( mm )DN40Flange   DN50Flange   DN50
Min. Water Flow ( m3/H )6.28.911
Water Side Pressure Drop≤70KPa≤75KPa≤80KPa
FanHigh   effiiciency axial flow fan
Noise ( dB(A) )≤65≤70≤75
Unit Dimension ( mm )1450*660*16001850*1000*20002000*1000*1850
Weight ( KG )400680860
Performance   Condition - A :  Ambient temp. (DB/WB): 7C/6°C, Water temp.   (Out): 45°C
Performance   Condition - B :  Ambient temp. (DB/WB): -12°C/-14°C, Water   temp. (Out): 41°C
Performance   Condition - C :  Ambient temp. (DB/WB): 35°C/24°C, Water   temp. (In/Out): 12°C/7°C.
