Product Name
Inverter EVI Heat Pump

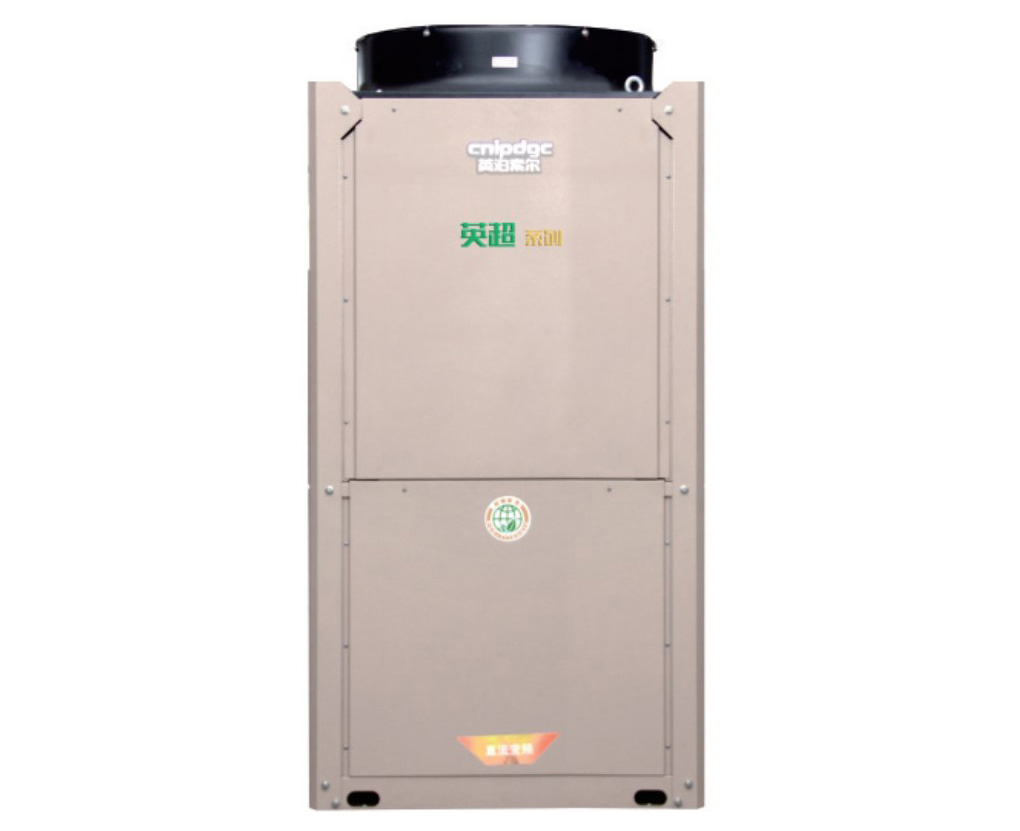

33KW 40KW Inverter& EVI Air Source ( Ultra-Low Ambient Temp.) Heat Pump
33KW 40KW Inverter& EVI Air Source ( Ultra-Low Ambient Temp.) Heat Pump
Product Model: WHP-100/120HC - 33/40KW
ModelWHP-100HC -   33KWWHP-120HC -   40KW
Power Supply - Refrigerant380-415V/3PH/50HZ   - R410A
Heating Capacity ( KW ) - A3340
Rated Input Power ( KW ) - A9.111.1
COP ( W/W ) - A3.633.60
Heating Capacity ( KW ) - B2227
Rated Input Power ( KW ) - B8.6510.5
COP ( W/W ) - B2.542.57
Cooling Capacity ( KW ) - C2330
Rated Input Power ( KW ) - C811.3
EER ( W/W ) - C2.882.65
Max. Input Power ( KW )1316
Max. Input Current ( A )2025
Compressor Hitachi   Scroll - EVI Technology
Fan TypeHigh   Efficiency Axial Flow Fan
Fan Quantity ( Pcs )11
Fan Airflow ( m3/h )1400014000
Fan Rated Power ( W )750750
Heat exchangerHigh Efficient Tank&   Coil Type Heat Exchanger
WaterSide Pressure Drop ( Kpa )8484
Inlet/Outlet Pipe Size ( mm )DN40DN40
Min. Flow ( m3/H )>6.2>7.8
Noise ( dB(A) )≤63≤65
Heating Water Temp. ℃20 ~   60℃
Cooling  Water Temp. ℃5 ~   20 ℃
Operating Ambient Temp. ℃ -35°C~45℃
Unit Dimension ( mm )970*1000*1900970*1000*1900
Weight ( KG )260kg/300kg280kg/310kg
Performance   Condition - A : Ambient temp.   (DB/WB): 7°C/6°C, Water temp. (In/Out): 40°C/ 45°C;
Performance   Condition - B : Ambient temp.   (DB/WB): -12°C/-14°C, Water temp. (Out): 41°C
Performance   Condition - C: Ambient temp.   (DB/WB): 35°C/24°C, Water temp. (In/Out): 12°C/7°C.
