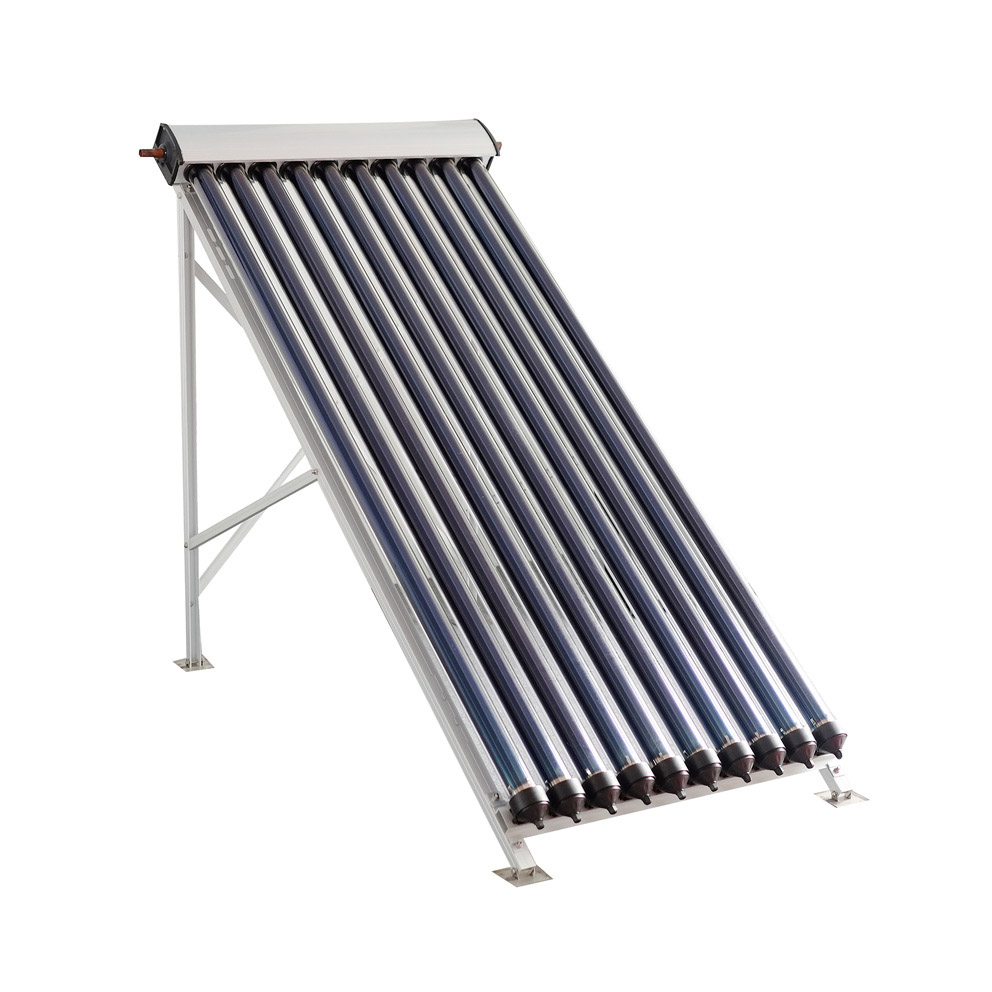

24MM Heat Pipe Vacuum Tube 58-1800 mm Pressure Solar Collector
24MM Heat Pipe Vacuum Tube 58-1800 mm Pressure Solar Collector
Product Model: IPRB B 581810-30 Pro

Heat Pipe (24mm) Vacuum Tube 58-1800mm Pressure Solar Collector

Main specifications :

  1. Inner manifold: Copper header pipe , Potable water rated.Maximum pressure: 1000kPa, Size 45mm x 1mm thickness

  2. Outer manifold: Aluminium alloy with Anodized or Powder Coated Finish , thickness 2mm

  3. 80mm distance between vacuum tubes

  4. Insulation: High quality Glass Wool (K = 0.043W/mK), 50mm

  5. Vacuum tube: Borosilicate 3.3 twin wall glass 58x1800mm, AlN/AIN-SS/CU coating coating,Vacuum: P<5x10-3 Pa, 58mm x 1800mm

  6. Heat pipe: High purity “oxygen free” copper pipe with Aluminum fin ,Startup temperature -45 C ;

    24mm diameter*55mm length condenser , 1mm thickness; 8mm diameter*1650 mm length Body,0.6 mm thickness

  7. Frame: 6005-T5 Aluminium Alloy 2.5mm thickness

  8. Stainless steel SUS 304 bolts

  9. Rubber Components :HTV Silicone Rubber (UV stabilised)

  10. Connection Options:22mm OD copper (Europe)

Optional accessories :

  1. Reflector:aluminum component


ModelLight Area(㎡)Vacuum   TubeCapacity
    (Liters)

20GP/40HQ

Loading Qty

Ø(mm)L(mm)NO   .
IPRB B 581810 Pro1.685818001085-100174/423
IPRB B 581812 Pro2.1758180012100-120153/372
IPRB B 581815 Pro2.6558180015125-150128/311
IPRB B 581818 Pro3.1258180018150-180102/251
IPRB B 581820 Pro3.4458180020170-20095/230
IPRB B 581824 Pro4.0858180024200-24082/200
IPRB B 581825 Pro4.2458180025210-25079/192
IPRB B 581830 Pro4.8958180030250-30067/163
