| Model | WHP-030HW - 12KW | WHP-050HW - 19KW | WHP-100HW - 38KW |
| Performance Condition ： Ambient temp. (DB/WB): 20°C/15°C, Hot Water temp. : 15°C to 55°C; | |||
| Heating Capacity ( KW ) | 12 | 19 | 38 |
| Rated Input Power ( KW ) | 2.8 | 4.5 | 8.8 |
| COP ( W/W ) | 4.29 | 4.22 | 4.32 |
| Hot Water Capacity ( L/H ) | 258.00 | 408.00 | 817.00 |
| Performance Condition ： Ambient temp. (DB/WB): 7°C/6°C, Hot Water temp. : 9°C to 55°C; | |||
| Heating Capacity ( KW ) | 9 | 15 | 29 |
| Rated Input Power ( KW ) | 2.6 | 4.3 | 8.4 |
| COP ( W/W ) | 3.46 | 3.49 | 3.45 |
| Performance Condition ： Ambient temp. (DB/WB): -12°C/-14°C, Hot Water temp. : 6°C to 55°C; | |||
| Heating Capacity ( KW ) | 5.5 | 9.2 | 17.2 |
| Rated Input Power ( KW ) | 2.4 | 3.9 | 7.6 |
| COP ( W/W ) | 2.29 | 2.36 | 2.26 |
| Rated Input Current ( A ) | 13.5 | 11.8 | 22.6 |
| Max Input Current ( A ) | 17.2 | 15.3 | 29.3 |
| Power Supply | 220V/1PH/50HZ | 380V/3PH/50HZ | |
| Electric Shock Protection Grade | I | ||
| Waterproof Grade | IPX4 | ||
| Max. Heating Water Temp. ℃ | 55℃ | ||
| Operating Ambient Temp. ℃ | -30°C~45℃ | ||

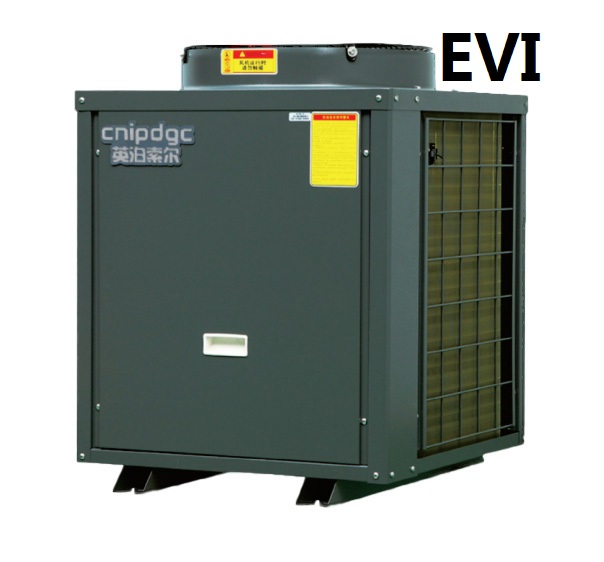

| Compressor | EMERSON Copeland Scroll - EVI Technology | ||
| Refrigerant | R410A | ||
| Heat exchanger | High efficient tank&coil type heat exchanger | ||
| Inlet/Outlet Pipe Size ( mm ) | DN25 | DN25 | DN40 |
| Min. Water Flow ( m3/H ) | 2.1 | 3.3 | 6.5 |
| Water Side Pressure Drop | ≤45 | ≤50 | ≤60 |
| Fan | High effiiciency axial flow fan | ||
| Noise ( dB(A) ) | ≤56 | ≤56 | ≤60 |
| Unit Dimension ( mm ) | 1100*400*860 | 1100*400*1250 | 1450*660*1600 |
| Weight ( KG ) | 82 | 155 | 400 |
