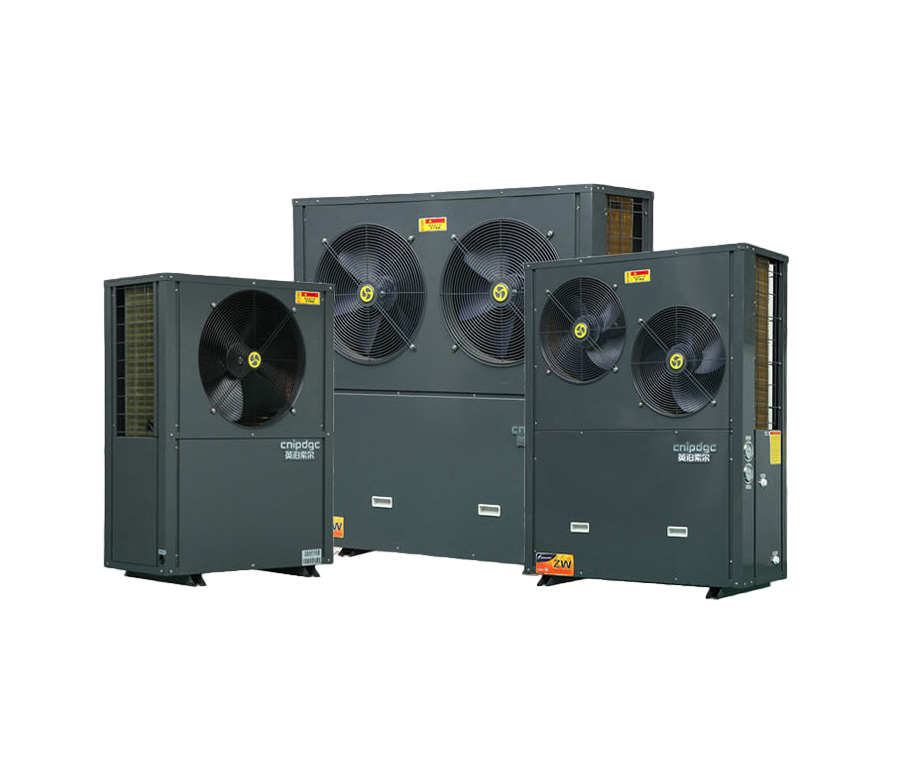

On/Off Heat Pump Water Heater
12/19/26/38 KW On/Off Air Source ( Normal Ambient Temp.) Heat Pump Water Heater
Product Model: 12/19/26/38 KW
Model | WHP-030HW - 12KW | WHP-050HW - 19KW | WHP-070HW - 26KW | WHP-100HW - 38KW |
| Performance Condition : Ambient temp. (DB/WB): 20°C/15°C, Hot Water temp. : 15°C to 55°C; |
Heating Capacity ( KW ) | 12 | 19 | 26 | 38 |
Rated Input Power ( KW ) | 2.8 | 4.5 | 6.1 | 8.8 |
COP ( W/W ) | 4.29 | 4.22 | 4.26 | 4.32 |
Hot Water Capacity ( L/H ) | 258.00 | 408.00 | 559.00 | 817.00 |
| Performance Condition : Ambient temp. (DB/WB): 7°C/6°C, Hot Water temp. : 9°C to 55°C; |
Heating Capacity ( KW ) | 9 | 15 | 21 | 29 |
Rated Input Power ( KW ) | 2.6 | 4.3 | 6.1 | 8.4 |
COP ( W/W ) | 3.46 | 3.49 | 3.44 | 3.45 |
Rated Input Current ( A ) | 13.5 | 11.8 | 16.5 | 22.6 |
Max Input Current ( A ) | 17.2 | 15.3 | 21.4 | 29.3 |
Power Supply | 220V/1PH/50HZ | 380V/3PH/50HZ |
Electric Shock Protection Grade | I |
Waterproof Grade | IPX4 |
Max.Heating Water Temp. ℃ | 55℃ |
Operating Ambient Temp. ℃ | -10°C~45℃ |
Compressor | EMERSON Copeland Scroll |
Refrigerant | R410A |
Heat exchanger | High efficient tank&coil type heat exchanger |
Inlet/Outlet Pipe Size ( mm ) | DN25 | DN25 | DN25 | DN40 |
Min. Water Flow ( m3/H ) | 2.1 | 3.3 | 4.4 | 6.5 |
Water Side Pressure Drop | ≤45 | ≤50 | ≤55 | ≤60 |
Fan | High effiiciency axial flow fan |
Noise ( dB(A) ) | ≤56 | ≤56 | ≤56 | ≤60 |
Unit Dimension ( mm ) | 830*490*1160 | 1100*490*1410 | 1340*540*1400 | 1450*660*1600 |
Weight ( KG ) | 95 | 150 | 194 | 270 |
