Main specifications
Inner manifold : SUS304-2B or 316 food-grade stainless steel , Laser welding technology
Vacuum tube : high-efficient coating 58*1800mm vacuum tube, hail-resistance: 25mm – 40mm
Outer manifold : painted/Aluminum alloy/SUS 304 stainless steel, free welding technology
Insulation layer: high density polyurethane , 72 hours efficient heat preservation
Frame : Alumimum alloy/SUS 304 stainless steel, anti-corrosive and anti-ultraviolet
Connection options : 3/4’ or 1’ stainless steel
Rubber components : HTV silicone rubber(UV stabilised)
Reflector : Aluminum component/stainless steel
Features
Relies on the natural circulation of water between the collector and the manifold
Beautiful appearance, high efficiency and lower cost solar collector
Suitable for different climates especially for warm area

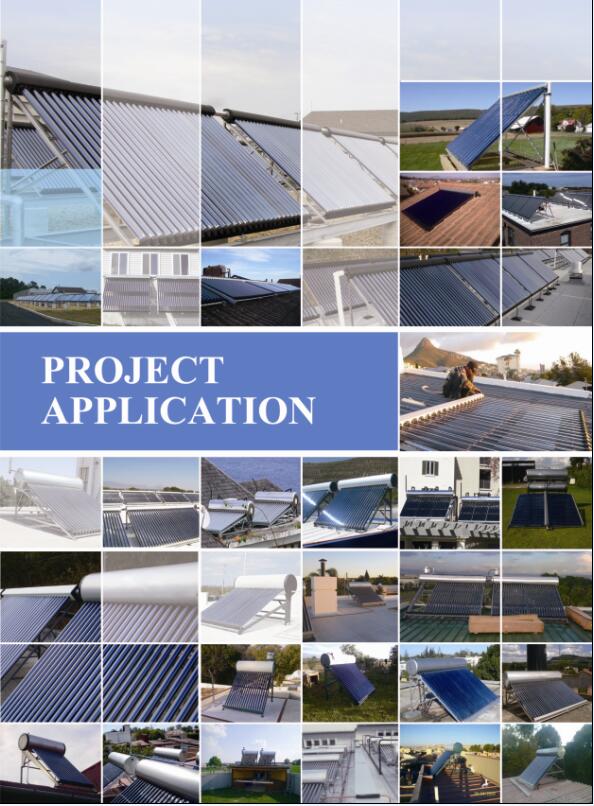

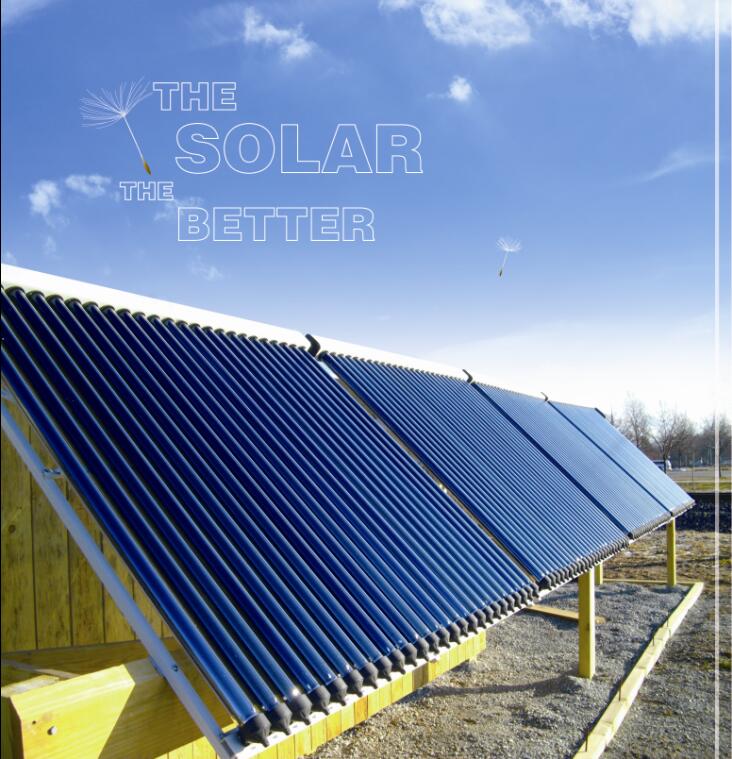

The collector can be applied in the domestic heating system or commercial project such as hotel , school , hospital , swimming pool and solar cooling etc
How it works:

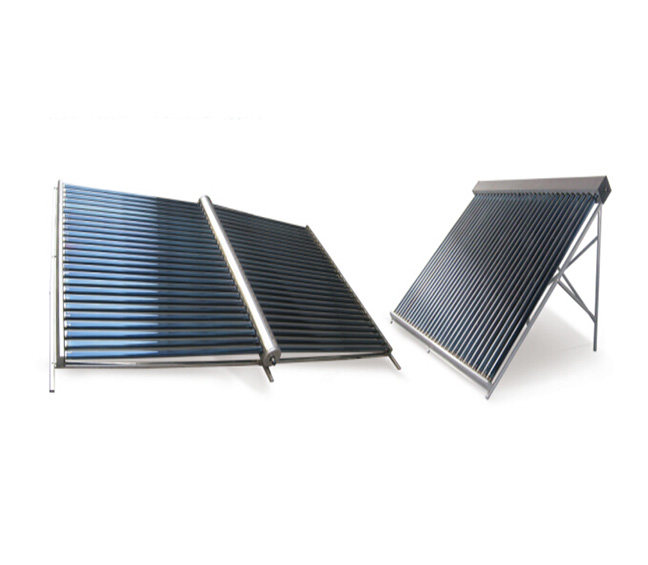

The heat pipe solar collector system uses pressurized vacuum tubes which transfer solar energy to a main heating pipe.
The vacuum tubes contain a copper pipe which is filled with liquid. When the pipe is heated, the liquid inside it vaporizes and rises up to the condenser at the top,
transferring the heat to the water passing through it. The cooled vapor then becomes liquid again, refilling the tube, which restarts the process.
Model | Lighting Area(㎡) | Vacuum Tube | Supply Water Capacity(liter) | 20GP/40HQ Loading Qty(sets) | ||
Φ(mm) | L(mm) | Qty(pcs) | ||||
IPRB F 581820 | 2.9 | 58.0 | 1,800.0 | 20.0 | 170-200 | 90/220 |
IPRB F 581830 | 4.3 | 58.0 | 1,800.0 | 30.0 | 250-300 | 65/157 |
IPRB F 471524 | 2.4 | 47.0 | 1,500.0 | 24.0 | 175-200 | 126/307 |
IPRB F 471530 | 3.0 | 47.0 | 1,500.0 | 30.0 | 220-250 | 92/223 |
IPRB F 581850 | 7.2 | 58.0 | 1,800.0 | 50.0 | 420-500 | 43/105 |
IPRB F 581860 | 8.6 | 58.0 | 1,800.0 | 60.0 | 500-600 | 38/93 |
IPRB F 471550 | 5.0 | 47.0 | 1,500.0 | 50.0 | 360-420 | 70/169 |
IPRB F 471560 | 6.0 | 47.0 | 1,500.0 | 60.0 | 440-500 | 62/149 |
