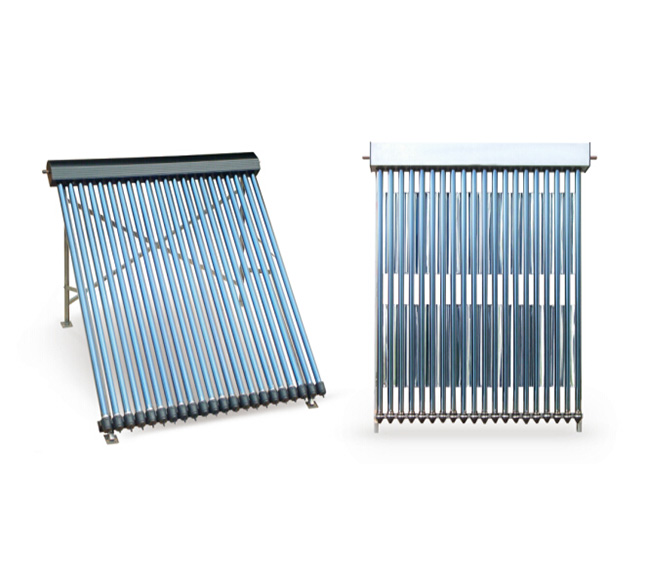

58mm vacuum tube heat pipe solar collector IPRB A (B)
58mm vacuum tube heat pipe solar collector IPRB A (B)
Product Model: IPRB A (B) series

Main specifications
Inner manifold:copper header pipe(ASTM:C1100,DIN:ECu-58);potable water rated.Maximum pressure:800kPa
Vacuum tube:Borosilicate 3.3 twin wall all glass 58*1800mm, high efficient coating, vacuum:P<5*10-3 Pa
Heat pipe: high purity “oxygen free” copper(ASTM:C10200,DIN:OF-Cu), startup temperature: ~30deg
Outer manifold: 5005-H16 Aluminium with Anodized or Powder Coated Finish or 304 stainless steel
Insulation: high quality glass wool (K=0.043W/mK), average>50mm
Frame: 202 stainless steel or 6005-T5 Aluminium Alloy
Connection: 22mm OD copper(Europe)
Rubber components: HTV Silicone Rubber(UV stabilised)
Reflector: Aluminum component/stainless steel



ModelLighting
Area(㎡)
Vacuum TubeSupply Water
Capacity(liter)
20GP/40HQ
Loading Qty(sets)
Φ(mm)L(mm)Qty(pcs)
IPRB A(B)5818101.45818001085-100174/423
IPRB A(B)5818121.6858180012100-120153/372
IPRB A(B)5818152.158180015125-150128/311
IPRB A(B)5818182.5258180018150-180102/251
IPRB A(B)5818202.858180020170-20095/230
IPRB A(B)5818243.3658180024200-24082/200
IPRB A(B)5818253.558180025210-25079/192
IPRB A(B)5818304.258180030250-30067/163

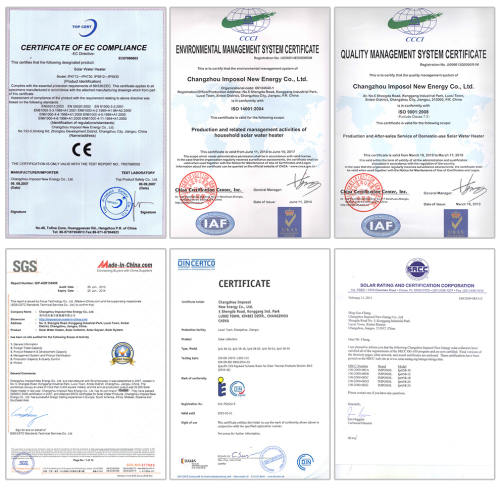

Certifications

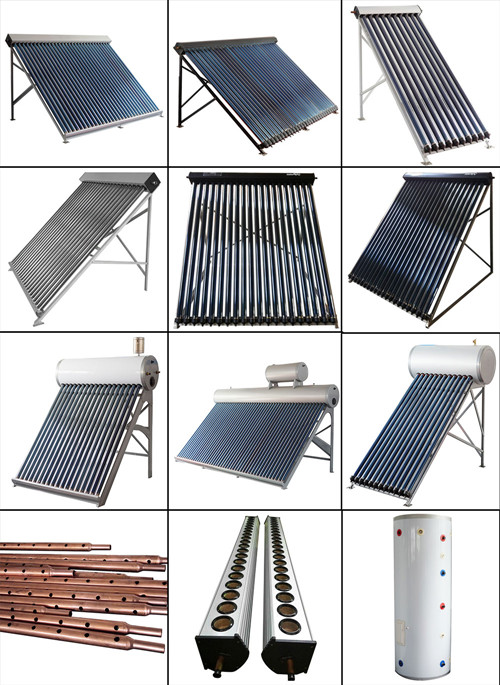

Our solar products
